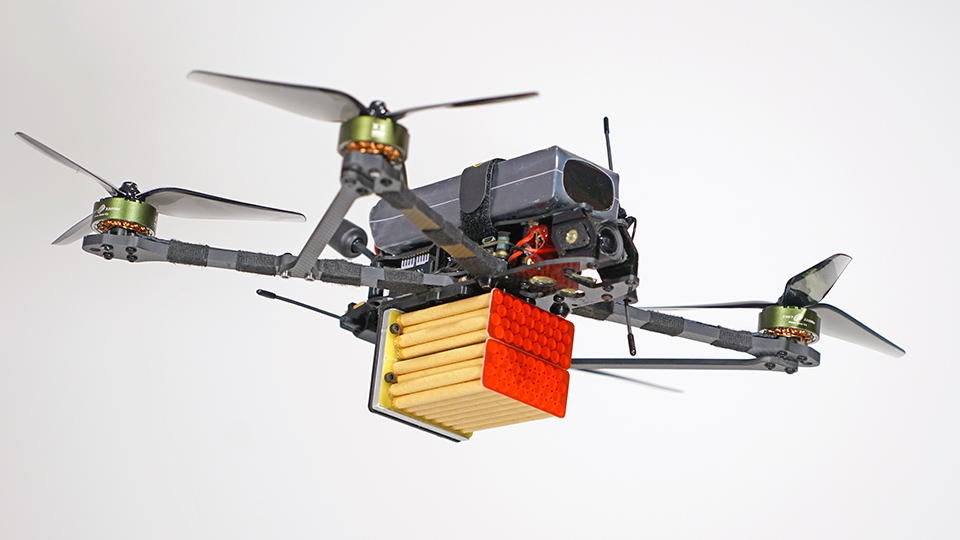

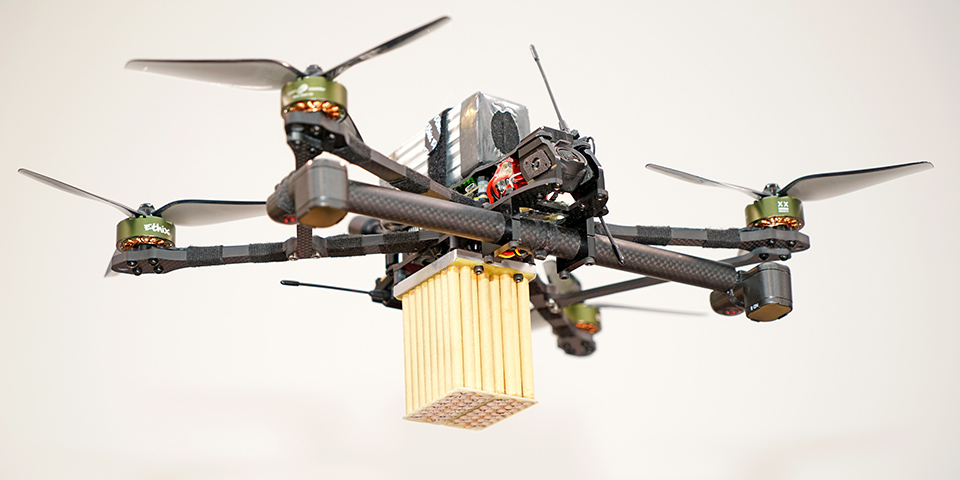

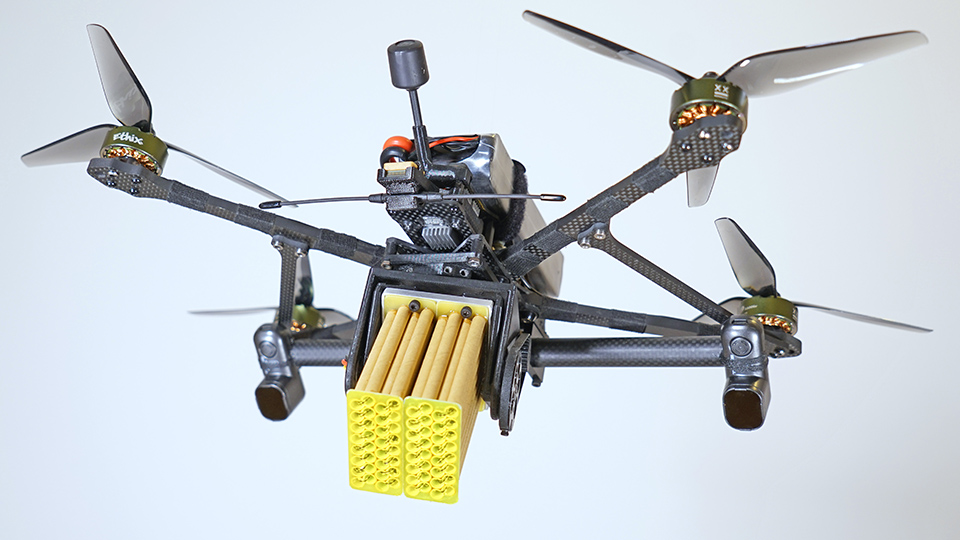

Multi-barrel ammunition that allows a racing drone to be turned into an interceptor

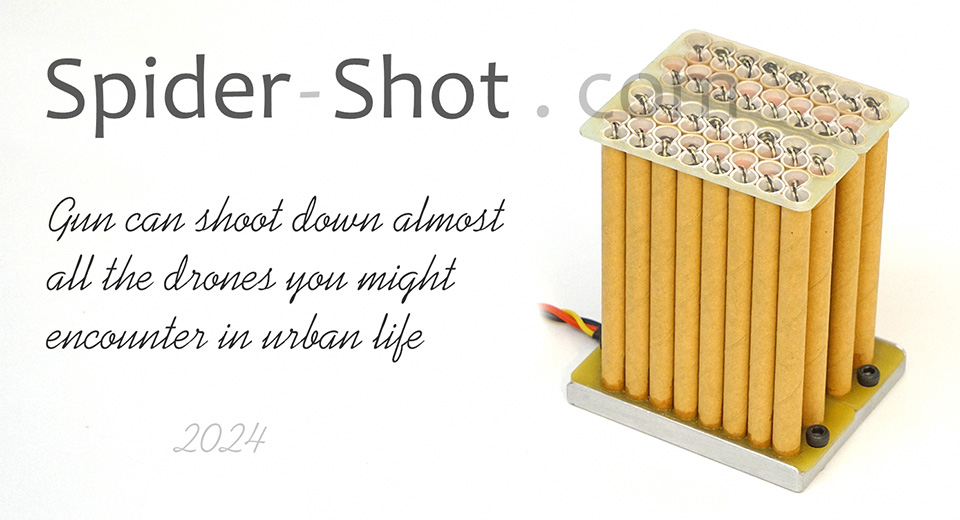

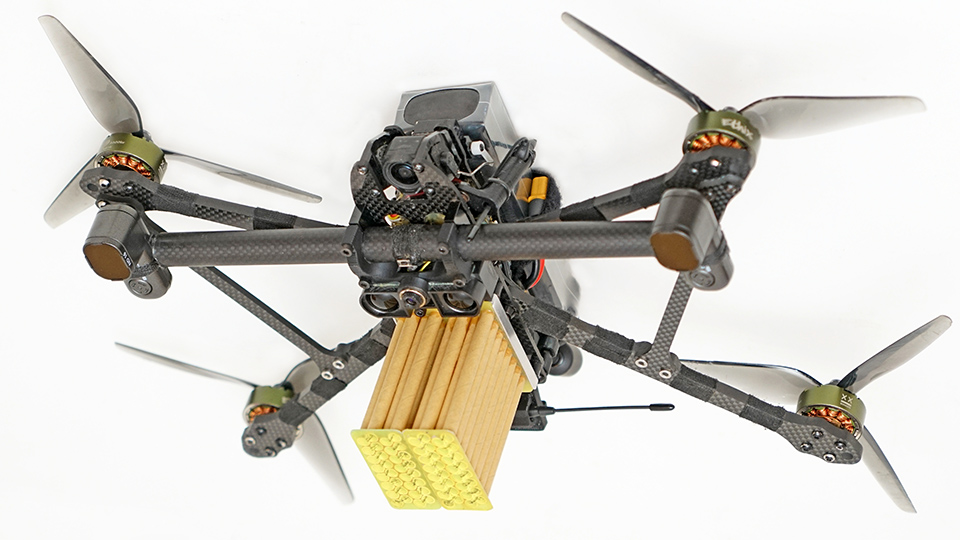

Gun allows you to attack several times in one flight and go back. The fired propeller snares entangle the rotor of most UAVs weighing up to 3 kg. For simplicity, I can say that the ammunition knocks down all multicopters with a camera, which is most of the drones flying in the city. The Spider Shot V-2024 gun weighs 120 grams and is loaded with 32 shots. The range of aimed shooting is 3 meters. Energy of the target's engine is used to block it, so muzzle energy can be small. The ammunition controller can be connected to a remote control or flight controller. The ammunition is not dangerous to humans and is classified as pyrotechnics.

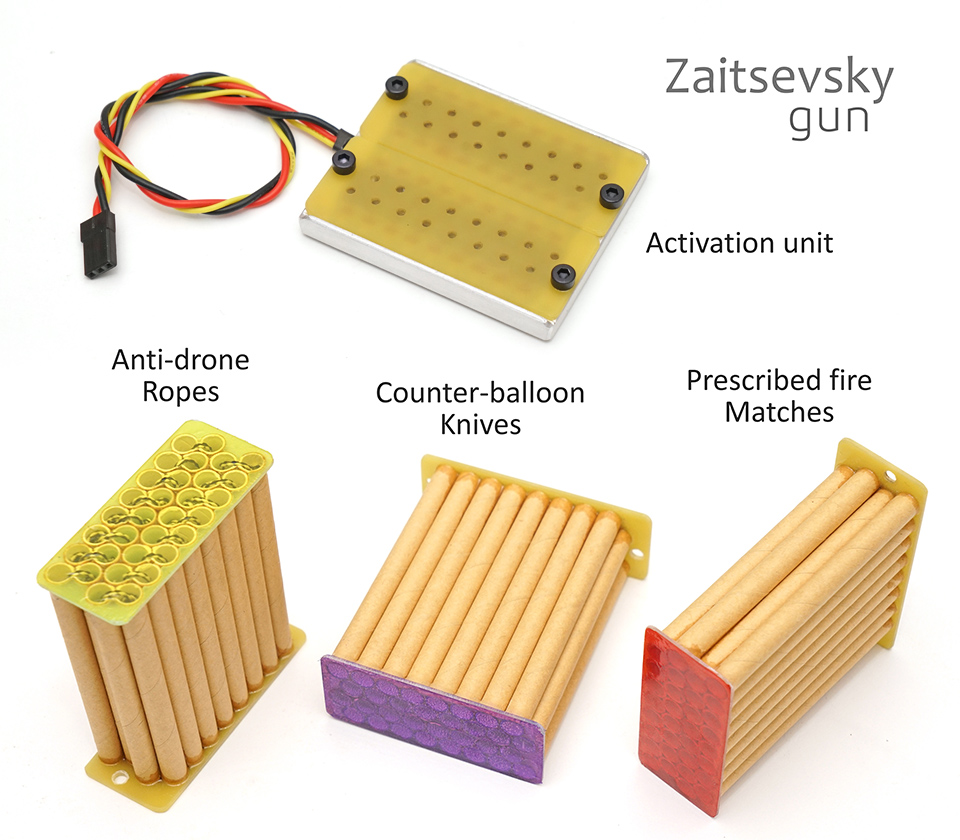

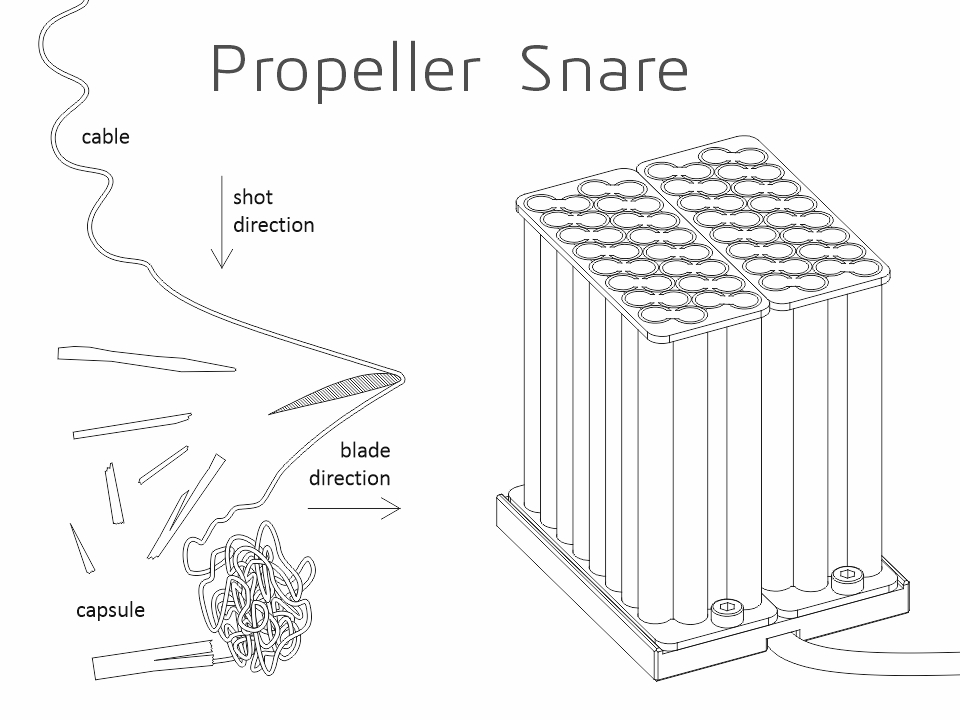

Abstract. The ammunition is used on a drone interceptor to combat other drones. The ammunition fires a propeller snare. Ammunition comprises multiple charges with separate electric activation for a multiple attack possibility. The rope forms an air barrier from the moment the shot is fired, it allows the target's propeller to become entangled at a short distance. Twisting the rope increases the likelihood of entanglement on the target. The design of the projectile reduces the likelihood of ricochet. Projectile filled with extra length of rope, it increases the likelihood of entangling the target's propeller. The ammunition is attached to the activation unit. The activation unit is attached to the weapon carrier. The low weight of the weapon allows it to be used on small interceptor drone.

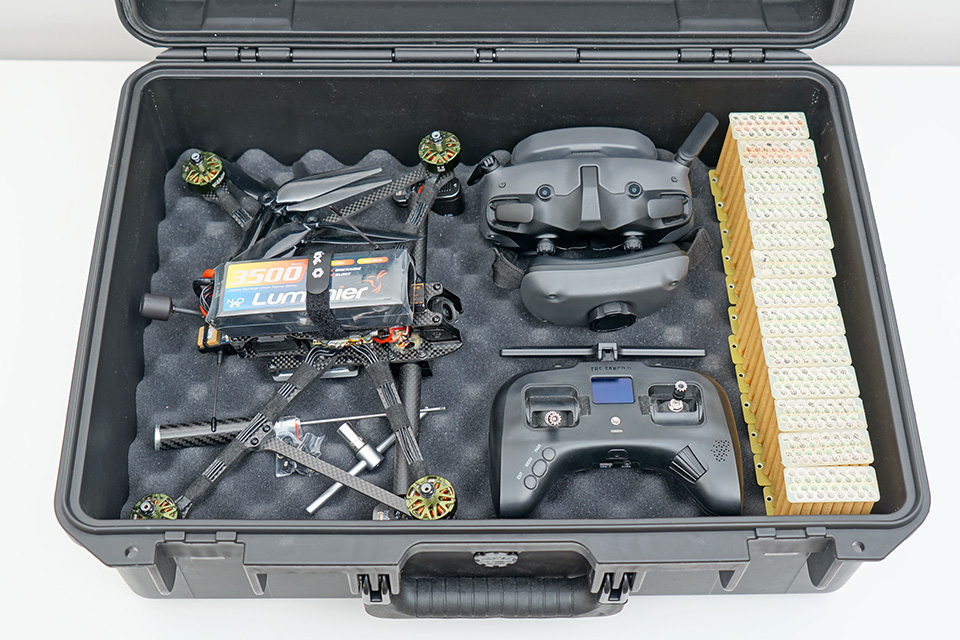

For demonstration, I use FPV drone. When automatic guidance systems become more reliable, the demand for weapons for interceptor drones will increase.

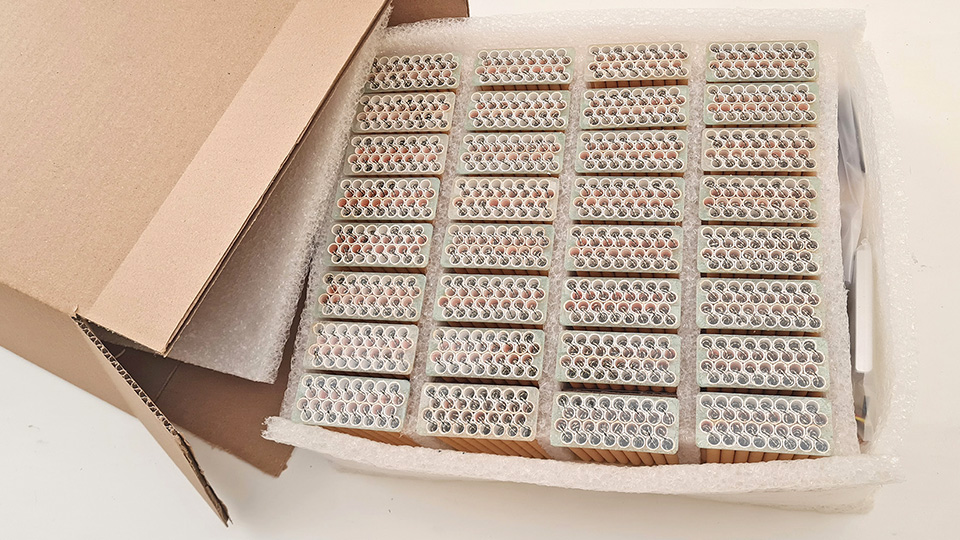

I am ready to organize licensed production in your country. My technology allows one employee to make 1,000 shots a month.

Aleksey Zaitsevsky
